Descripción

Especificaciones:

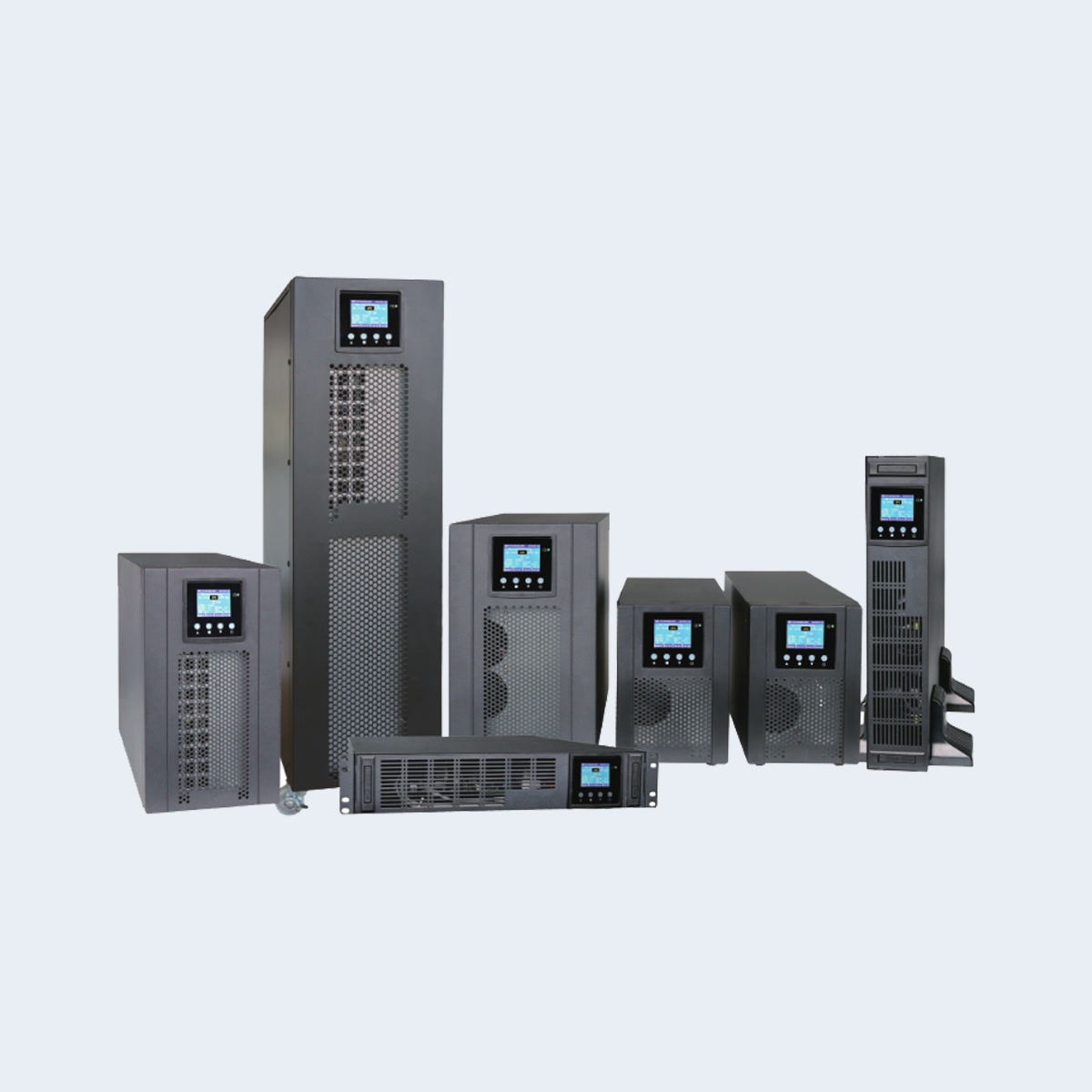

• Model: 1KVA–10KVA

• UPS Structure: Online Double Conversion

• Efficiency: >95% (98.5% ECO)

• Noise: <50dB

• Temp: -20° to 50°C operation, -25° to 60°C storage

• Standards: GB/T, EN/IEC 61000, 62040

• Protections: Overload, short-circuit, over temp, DC start, EPO, ECO, generator compatibility.

• Display: LCD premium version (multi-language), LED in standard version.

• Input Specs: 220Vac (110–300Vac range), PF=0.99, THDI ≤3%.

• Output Specs: 220Vac ±1–5%, pure sine wave, PF=1.0, <3% THD.

• Overload tolerance: up to 150%.

• Battery Specs: Sealed Lead Acid, 12V/7–9Ah units depending on model, charging current max 12A.

• Communication: RS232/EPO standard, SNMP/485 optional.

• Physical Parameters: Sizes and weights differ per model (1KVA to 10KVA).
